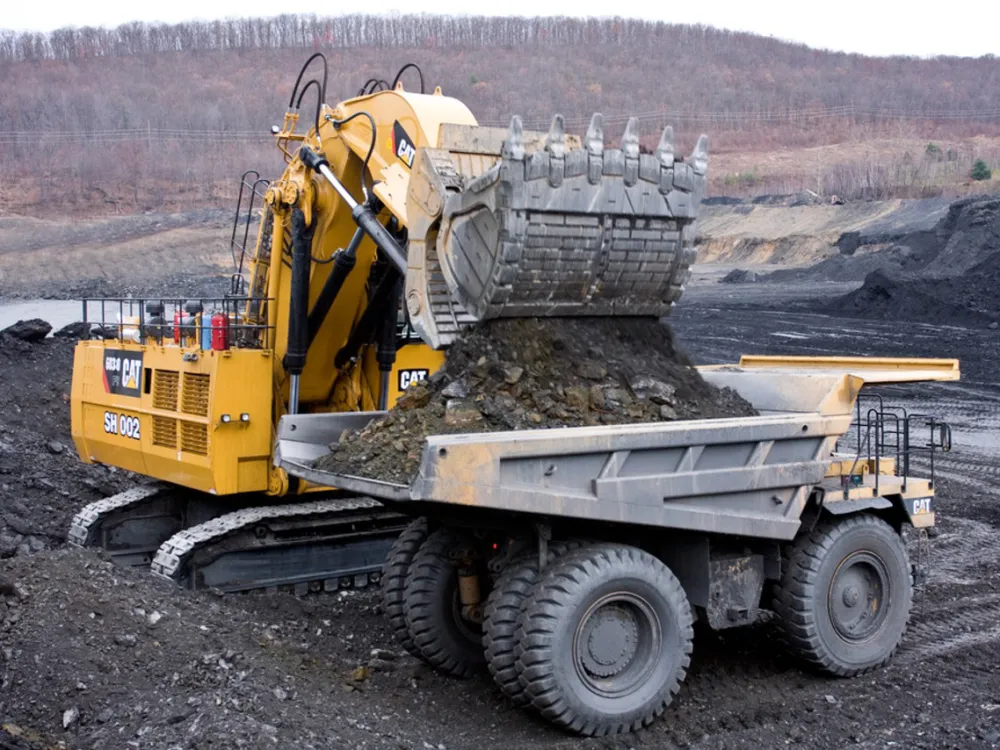

Designed to operate reliably in some of the most demanding mining applications, the Caterpillar 6030 Hydraulic Mining Shovel realizes faster cycle times with greater control, resulting in an increase in productivity with a lower cost-per-ton. Power for this machine comes from the two Caterpillar C27 ACERT™ diesel engines producing 1,530 netto hp, or alternatively, an electric version is available for applications which don’t require as much portability. With a maximum bucket capacity of 22.2 yd3 delivering a payload of 34 tons per pass, the Caterpillar 6030 Hydraulic Shovel is perfectly paired with a number of Caterpillar mining trucks from the Caterpillar 777, 785 or 789 series Off-Highway Trucks to provide optimal pass match pairings, maximizing the volume of material moved throughout the shift.

Specification highlights:

• Engine: two Caterpillar C27 ACERT Diesel Engines
• Net Power – 1530hp
• Face Shovel Bucket Capacity (Heaped 2:1): 21.6 yd3
• Backhoe Bucket Capacity (Heaped 1:1): 22.2yd3
• Maximum Travel Speed: 1.680mph
