Caterpillar presented the new "B" generation of articulated dump trucks with an updated look and increased driver comfort at the CONEXPO-CON/AGG 2011 in Las Vegas.

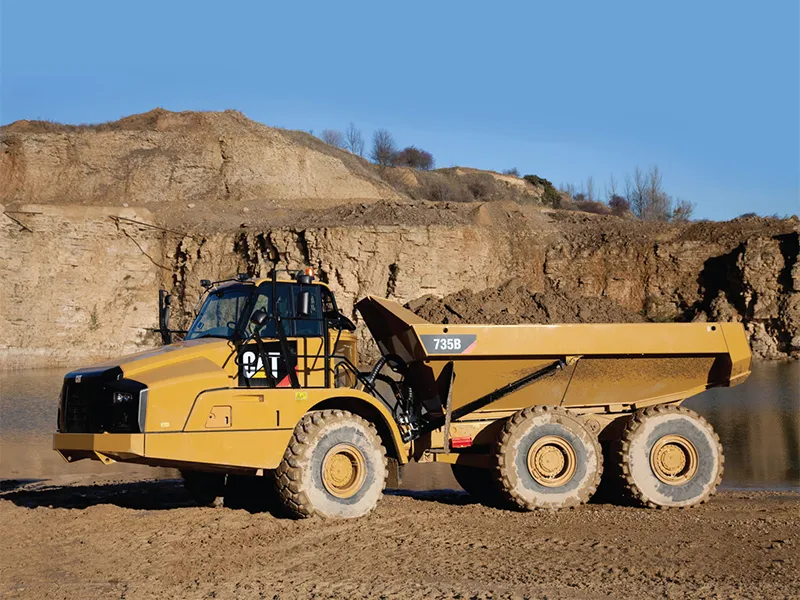

The Caterpillar 735B Articulated Dump Trucks with 36 tons rated payload offers proven reliability and durability, high productivity, superior operator comfort and lower operating costs. The spacious two-person cab with forward facing passenger seat and off road oil/nitrogen front suspension cylinders keep the operator comfortable through out the working day.

Provided with a 447hp Strong, durable Cat C15 ACERT™ engine with the Tier 4 Interim/EU Stage IIIB exhaust emission solution and electronically controlled smooth shifting transmissions deliver high productivity with low fuel consumption.

Specification highlights:

• Caterpillar C15 ACERT Engine
• Net Power – ISO 14396: 447hp
• Rated Payload: 36 tons
• Transmission: 7-speed forward and two-speed reverse Electronic Clutch Pressure Controlled (ECPC)
• Body Capacity: 25.8 yd3
• Maximum Travel Speed: 31.8 mph
